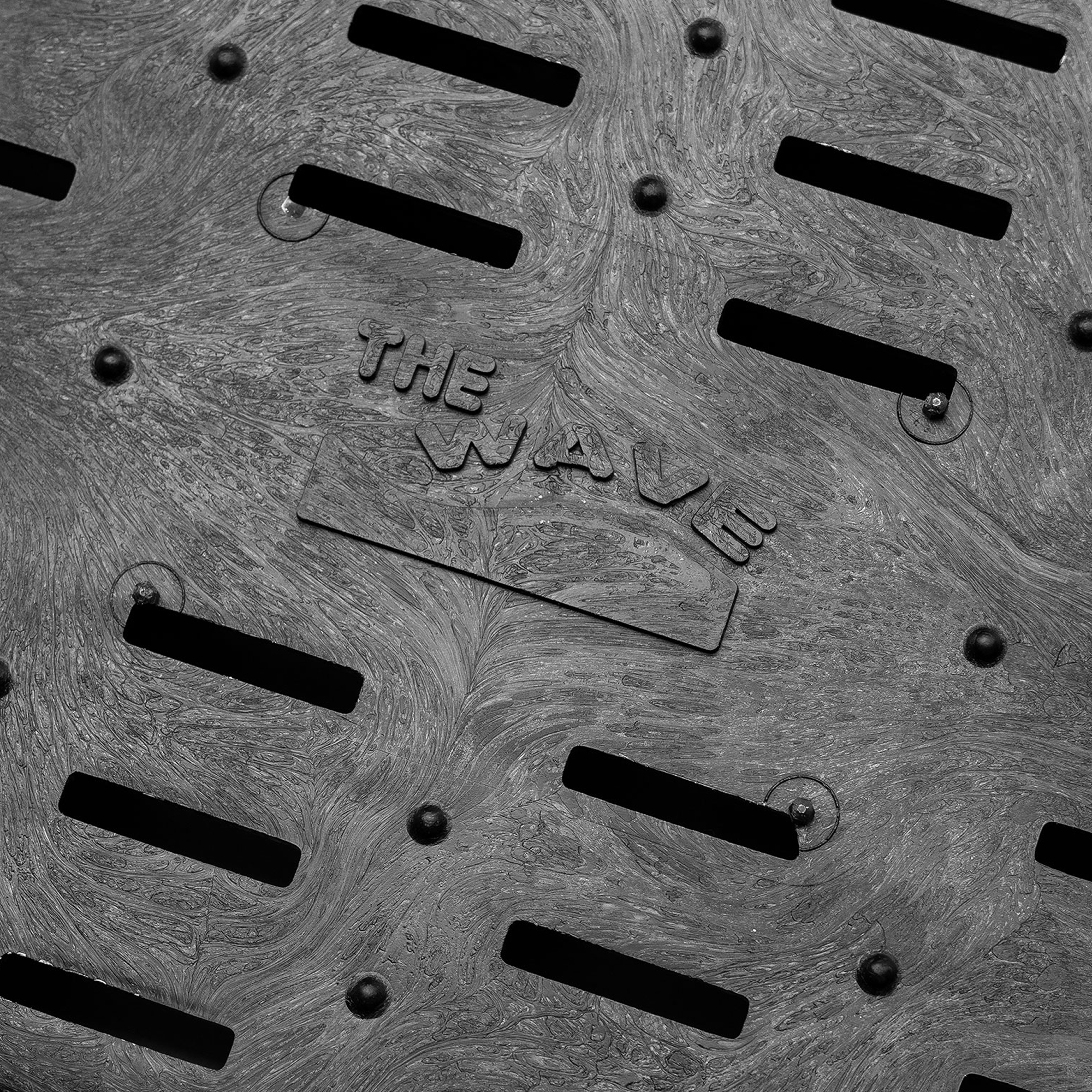

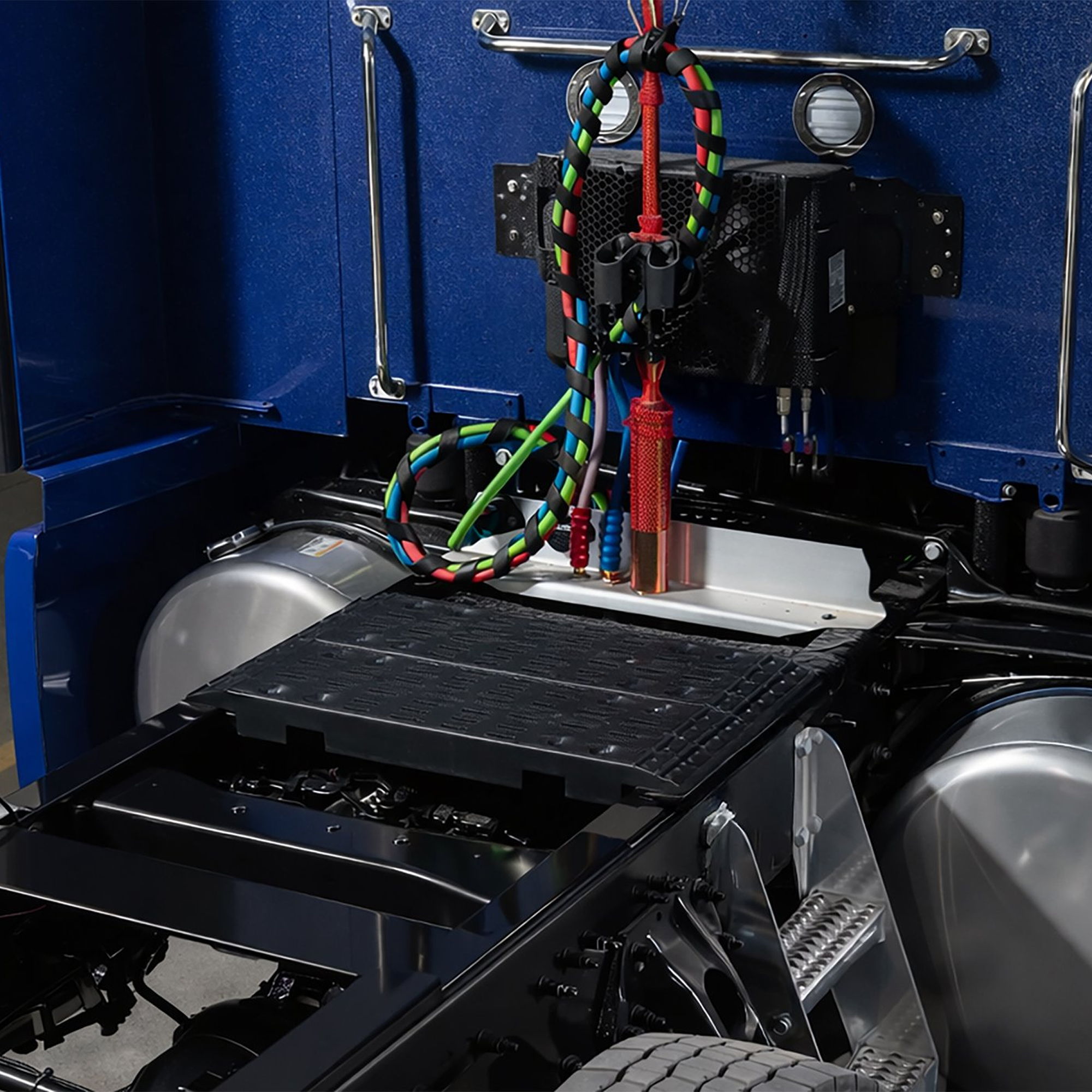

Developed and manufactured by HQ Truck Parts in Michigan, The Wave Deck replaces traditional aluminum and steel catwalk deck plates with a lighter, safer, lower-maintenance solution built for real-world trucking conditions.
✔ Rust-resistant
✔ Won’t cut airlines
✔ Withstands up to 450 lbs
✔ Lightweight
✔ No-trip hazard -
Includes all mounting and hardware.
EXCEEDS DOT requirements.
Dimensions: 34" x 10" x 5"
Weight: 23 lbs
-

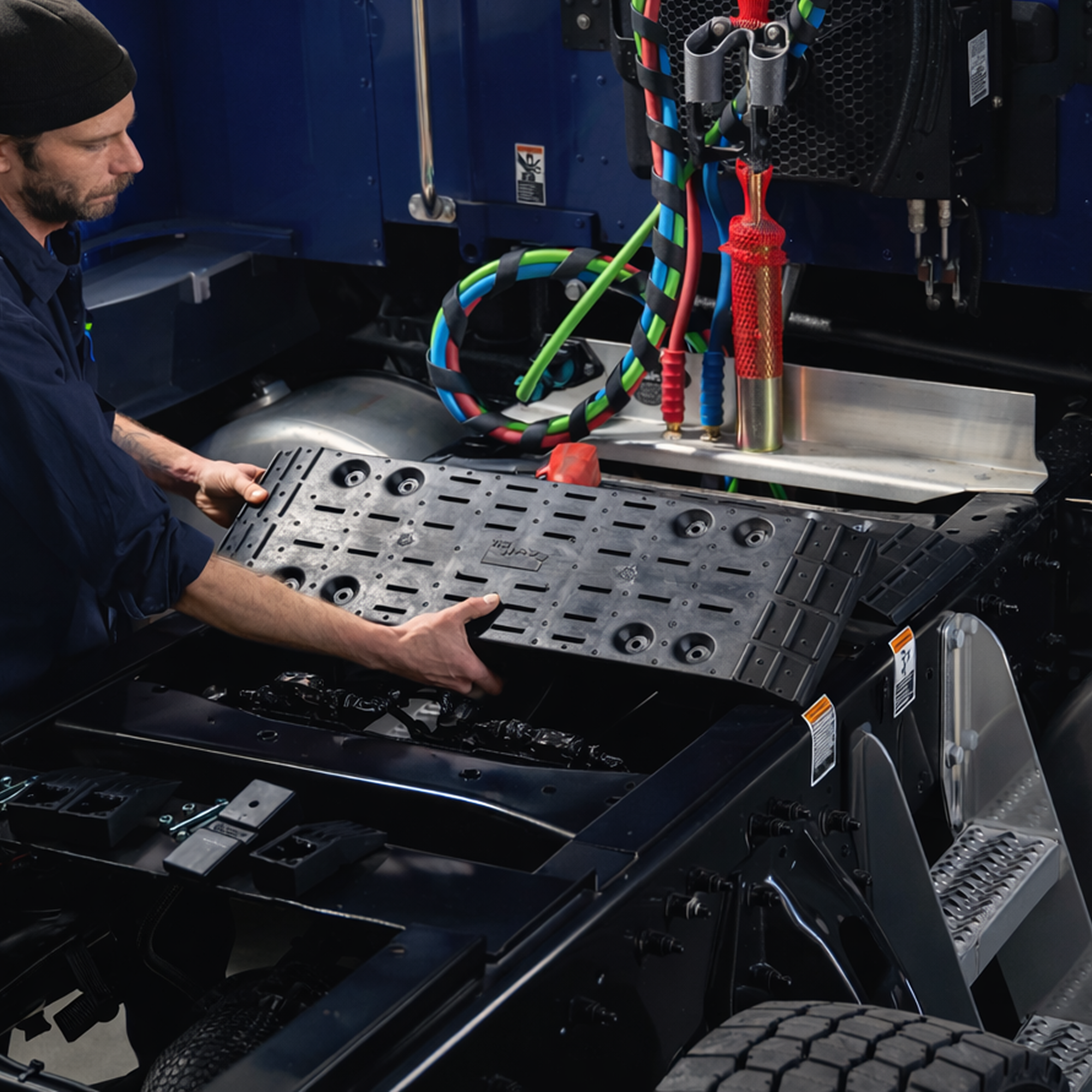

STEP 1: POSITION THE DECK
Place the Wave Deck directly on top of the truck frame rails where the catwalk will be installed. Ensure the deck sits flat and aligned with the rails.ption text goes here
STEP 2: POSITION THE BRACKETS
Hold one of the supplied brackets underneath the frame rail, aligning it with the mounting hole in the deck.
STEP 3: INSERT THE BOLT
Insert the mounting bolt from the top of the Wave Deck down through the deck and past the frame rail.
STEP 4: ATTACH THE BRACKETS
Attach the brackets to the bolt underneath the frame rail and start threading the nut.STEP 5: TIGHTEN THE BOLTS
Hand tighten the bolt and clamp to hold the deck securely in place.
CONNECT YOUR DECKS
Easily connect two 10” Wave Decks with our Connector Plates to create a wider 20” catwalk for added workspace and accessibility.
Just $125 per deck when you order two or more.
Install your wave deck in 4 easy steps
No complicated install. Get back on the road.
-
![1. POSITION THE WAVE DECK]()
1. POSITION THE WAVE DECK
Place the Wave Deck directly on top of the truck frame rails where the catwalk will be installed. Ensure the deck sits flat and aligned with the rails.
-
![2. INSERT THE BOLT]()
2. INSERT THE BOLT
Hold one of the supplied brackets underneath the frame rail, aligning it with the mounting hole in the deck.
-
![3. POSITION THE BRACKET]()
3. POSITION THE BRACKET
Insert the mounting bolt from the top of the Wave Deck down through the deck and past the frame rail.
-
![4. TIGHTEN THE BOLTS]()
4. TIGHTEN THE BOLTS
Attach the brackets to the bolt underneath the frame rail. Tighten the bolt and clamp to hold the deck securely in place.
quick. simple. secure.
This step-by-step installation video will guide you with installing The Wave Deck composite catwalk.
No welding. No drilling. No complicated modifications.
Easy to install in 10 minutes or less.
The Wave Deck vs. Traditional Deck Plates
UPGRADE YOUR METAL DECK
BEFORE IT BECOMES A PROBLEM
An aging deck, damaged line or unexpected repair doesn't happen on your schedule. It's what waiting could cost you.
LOSS OF AIR PRESSURE
BRAKES ENGAGING
truck immobilized
COSTLY DOWNTIME
roadside repairs
ADDITIONAL REPAIRS
The 20-inch Wave Deck is a next-generation composite truck catwalk designed to provide a stable, durable walking surface between cab and cargo.
The 10-inch Wave Deck composite truck catwalk is a next-generation composite truck catwalk designed to provide a stable, durable walking surface between cab and cargo.
Buying for A FLEET?
Standardize equipment while reducing maintenance concerns and costs across your operation.
✔ Reduce downtime due to repairs
✔ Fleet pricing & volume purchasing
✔ Custom sizing & colors available
✔ Dedicated fleet support
